PopupWindow 的 BadTokenException

发表于

[toc]

PopupWindow 的 BadTokenException

2.0.0 版本出现这个崩溃

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Fatal Exception: android.view.WindowManager$BadTokenException: Unable to add window -- token null is not valid; is your activity running?
       at android.view.ViewRootImpl.setView(ViewRootImpl.java:890)
       at android.view.WindowManagerGlobal.addView(WindowManagerGlobal.java:337)
       at android.view.WindowManagerImpl.addView(WindowManagerImpl.java:109)
       at android.widget.PopupWindow.invokePopup(PopupWindow.java:1333)
       at android.widget.PopupWindow.showAsDropDown(PopupWindow.java:1156)
       at androidx.core.widget.PopupWindowCompat.showAsDropDown(PopupWindowCompat.java:69)
       at com.dianyun.pcgo.gift.api.RelativePopupWindow.showOnAnchor(RelativePopupWindow.java:196)
       at com.dianyun.pcgo.gift.api.RelativePopupWindow.showOnAnchor(RelativePopupWindow.java:133)
       at com.dianyun.pcgo.gift.api.RelativePopupWindow.showOnAnchor(RelativePopupWindow.java:108)
       at com.dianyun.pcgo.home.explore.discover.ui.HomeExploreTopRightView.showReceiveGiftTips(HomeExploreTopRightView.java:112)
       at com.dianyun.pcgo.home.explore.discover.ui.HomeExploreTopRightView.access$showReceiveGiftTips(HomeExploreTopRightView.java:42)
       at com.dianyun.pcgo.home.explore.discover.ui.HomeExploreTopRightView$startObserver$$inlined$apply$lambda$1.onChanged(HomeExploreTopRightView.java:81)
       at com.dianyun.pcgo.home.explore.discover.ui.HomeExploreTopRightView$startObserver$$inlined$apply$lambda$1.onChanged(HomeExploreTopRightView.java:42)
       at androidx.lifecycle.LiveData.considerNotify(LiveData.java:133)
       at androidx.lifecycle.LiveData.dispatchingValue(LiveData.java:151)
       at androidx.lifecycle.LiveData.setValue(LiveData.java:309)
       at androidx.lifecycle.MutableLiveData.setValue(MutableLiveData.java:50)
       at com.dianyun.pcgo.home.explore.HomeExploreMainViewModel$queryGiftObtainStatus$1.invokeSuspend(HomeExploreMainViewModel.java:91)
       at kotlin.coroutines.jvm.internal.BaseContinuationImpl.resumeWith(BaseContinuationImpl.java:33)
       at kotlinx.coroutines.DispatchedTask.run(DispatchedTask.java:106)
       at android.os.Handler.handleCallback(Handler.java:739)
       at android.os.Handler.dispatchMessage(Handler.java:95)
       at android.os.Looper.loop(Looper.java:148)

1 初步分析

原始的代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
private fun showReceiveGiftTips(tips: String) {
    L.info(TAG, "showReceiveGiftTips tips $tips")
    val activity = getContextToActivity()
    if ((tips.isNotEmpty() && mHomeReceiveGiftTipsPopupWindow == null
                    && activity?.isFinishing == false && !activity.isDestroyed) && mVisibleToUser) {
        mHomeReceiveGiftTipsPopupWindow = HomeReceiveGiftTipsPopupWindow(context!!)
        mHomeReceiveGiftTipsPopupWindow!!.setData(tips)
        mHomeReceiveGiftTipsPopupWindow!!.showOnAnchor(
                fl_gift,
                RelativePopupWindow.VerticalPosition.BELOW,
                RelativePopupWindow.HorizontalPosition.CENTER
        )
    }
}

我们现在找到抛出异常的地方

ViewRootImpl#setView

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
 /**
 * We have one child
 */
public void setView(View view, WindowManager.LayoutParams attrs, View panelParentView) {
    synchronized (this) {
        if (mView == null) {
            mView = view;
              mAttachInfo.mDisplayState = mDisplay.getState();
                mDisplayManager.registerDisplayListener(mDisplayListener, mHandler);

                mViewLayoutDirectionInitial = mView.getRawLayoutDirection();
                mFallbackEventHandler.setView(view);
                mWindowAttributes.copyFrom(attrs);
                if (mWindowAttributes.packageName == null) {
                    mWindowAttributes.packageName = mBasePackageName;
                }
                attrs = mWindowAttributes;


              requestLayout();  <--注意这里

              int res; /* = WindowManagerImpl.ADD_OKAY; */

                ...

                try {
                    mOrigWindowType = mWindowAttributes.type;
                    mAttachInfo.mRecomputeGlobalAttributes = true;
                    collectViewAttributes();
                    res = mWindowSession.addToDisplay(mWindow, mSeq, mWindowAttributes,
                            getHostVisibility(), mDisplay.getDisplayId(), mTmpFrame,
                            mAttachInfo.mContentInsets, mAttachInfo.mStableInsets,
                            mAttachInfo.mOutsets, mAttachInfo.mDisplayCutout, mInputChannel,
                            mTempInsets);
                    setFrame(mTmpFrame);
                } catch (RemoteException e) {
                    ..
                }


                 if (res < WindowManagerGlobal.ADD_OKAY) {
                    mAttachInfo.mRootView = null;
                    mAdded = false;
                    mFallbackEventHandler.setView(null);
                    unscheduleTraversals();
                    setAccessibilityFocus(null, null);
                    switch (res) {  //  <------------------ 这里抛出异常
                        case WindowManagerGlobal.ADD_BAD_APP_TOKEN:
                        case WindowManagerGlobal.ADD_BAD_SUBWINDOW_TOKEN:
                            throw new WindowManager.BadTokenException(
                                    "Unable to add window -- token " + attrs.token
                                    + " is not valid; is your activity running?");

                ...

                ...

            }

    }

}

2 初步解决

看到这个问题，一般会认为是 Activity 已经 finished 或者应 destroyed 了，所以我们在前面加判断。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

private fun showReceiveGiftTips(tips: String?) {
    L.info(TAG, "showReceiveGiftTips tips $tips")
    if (!mVisibleToUser) {
        return
    }
    if (tips.isNullOrEmpty()) {
        return
    }
    if (mHomeReceiveGiftTipsPopupWindow != null) {
        return
    }
    val activity = getContextToActivity()  // 这里加了 activity 的判断
    if (ActivityUtils.activityIsDestroyed(activity)) {
        return
    }
    mHomeReceiveGiftTipsPopupWindow = HomeReceiveGiftTipsPopupWindow(context!!)
    mHomeReceiveGiftTipsPopupWindow!!.setData(tips)
    mHomeReceiveGiftTipsPopupWindow!!.showOnAnchor(
            fl_gift,
            RelativePopupWindow.VerticalPosition.BELOW,
            RelativePopupWindow.HorizontalPosition.CENTER
    )
}

我们开心的修复，在 2.0.1 跟了出去

然而，还是有问题

3 分析过程

第一次解决尝试失败，我们在重新审视这个崩溃。

下面是平时我们遇到的

1
2
3
4
5
6
7
8
9
android.view.WindowManager$BadTokenException: Unable to add window — token android.os.BinderProxy@447a6748 is not valid; is your activity running?
at android.view.ViewRoot.setView(ViewRoot.java:468)
at android.view.WindowManagerImpl.addView(WindowManagerImpl.java:177)
at android.view.WindowManagerImpl.addView(WindowManagerImpl.java:91)
at android.view.Window$LocalWindowManager.addView(Window.java:424)
at android.app.Dialog.show(Dialog.java:239)
at android.app.Activity.showDialog(Activity.java:2488)
…
at android.os.Handler.dispatchMessage(Handler.java:99)

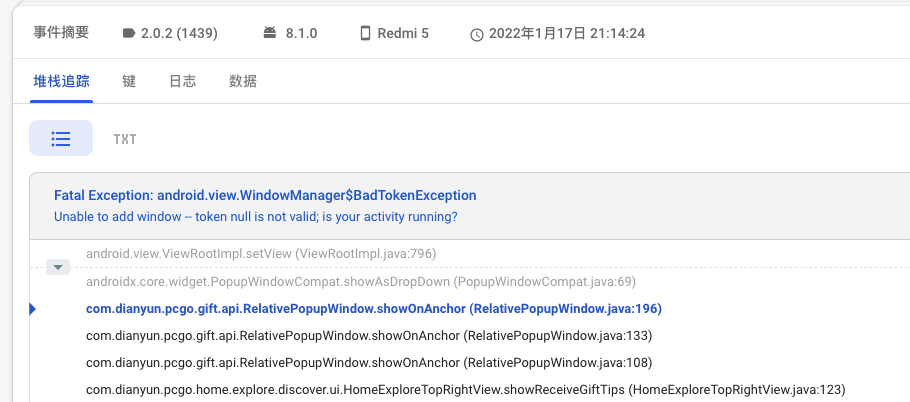

结合抛出的异常信息，我们发现 chikii 抛出的这个 BadTokenException token 的值为空。它和我们平时遇到的 BadTokenException 有点不一样.

1
WindowManager$BadTokenException: Unable to add window -- token null is not valid; is your activity running?

这个 token 是 null 就是突破口

我们先看看这个 token 是从哪里来的

3.1 PopupWindow#show 的流程

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
@startuml

RelativePopupWindow -> RelativePopupWindow: showOnAnchor(anchor)
RelativePopupWindow -> PopupWindow: showAtLocation(parent) ①

PopupWindow -> PopupWindow: showAtLocation(token) ②

PopupWindow -> PopupWindow: createPopupLayoutParams(token): WindowManager.LayoutParams③

PopupWindow -> PopupWindow: invokePopup(WindowManager.LayoutParams) ④

PopupWindow -> WindowManagerImpl:addView(View, iewGroup.LayoutParams)

WindowManagerImpl -> WindowManagerGlobal:addView(View,ViewGroup.LayoutParams ...) ⑤

WindowManagerGlobal -> ViewRootImpl:setView(view,WindowManager.LayoutParams,panelParentView) ⑥

@enduml

说明：
①
PopupWindow#showAtLocation
在这个方法拿到 anchor 锚点 View 的 windowToken，然后一路传着下去
仍然会

1
2
3
4
public void showAtLocation(View parent, int gravity, int x, int y) {
    mParentRootView = new WeakReference<>(parent.getRootView());
    showAtLocation(parent.getWindowToken(), gravity, x, y);
}

②③
创建 WindowManager.LayoutParams

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
// PopupWindow#showAtLocation
public void showAtLocation(IBinder token, int gravity, int x, int y) {

    ...

    final WindowManager.LayoutParams p = createPopupLayoutParams(token);
    preparePopup(p);

    ...

    invokePopup(p);
}


protected final WindowManager.LayoutParams createPopupLayoutParams(IBinder token) {
    final WindowManager.LayoutParams p = new WindowManager.LayoutParams();

    ...

    p.token = token;

    ...

    return p;
}

④
PopupWindow#invokePopup
将 DecorView 添加到 WindowManager 中

1
2
3
4
5
6
7
8
9
10
11
12
13

private void invokePopup(WindowManager.LayoutParams p) {

      ...

       final PopupDecorView decorView = mDecorView;

       ...

       mWindowManager.addView(decorView, p);

       ...
   }

⑤
WindowManagerGlobal#addView 里面创建 ViewRootImpl 并调用 ViewRootImpl 的 addView 方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
// WindowManagerGlobal#addView
 public void addView(View view, ViewGroup.LayoutParams      params,Display display, Window parentWindow) {

     ....

    ViewRootImpl root;

    root = new ViewRootImpl(view.getContext(), display);

    view.setLayoutParams(wparams);

    ...

    root.setView(view, wparams, panelParentView);

    ...

 }

⑥
调用 WindowSession.addToDisplay 显示 PopuWindow

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
//ViewRootImpl#setView
 public void setView(View view, WindowManager.LayoutParams attrs, View panelParentView) {
        synchronized (this) {
            if (mView == null) {
                mView = view;

                ...

                attrs = mWindowAttributes;

                ...

                requestLayout();

                ...

                 try {

                    ...
                     // 调用 WindowSession.addToDisplay 显示 PopupWindow
                    res = mWindowSession.addToDisplay(...);

                } catch (RemoteException e) {

                    ...

                }

现在整个调用的 链路都非常清楚了，调用 HomeReceiveGiftTipsPopupWindow 的 锚点 View 的 token 为空，即
fl_gift 的token 为空

1
2
3
4
5
6
7
mHomeReceiveGiftTipsPopupWindow = HomeReceiveGiftTipsPopupWindow(context!!)
    mHomeReceiveGiftTipsPopupWindow!!.setData(tips)
    mHomeReceiveGiftTipsPopupWindow!!.showOnAnchor(
            fl_gift,  <---- 这个 View 的 token 为空
            RelativePopupWindow.VerticalPosition.BELOW,
            RelativePopupWindow.HorizontalPosition.CENTER
    )

3.2 View 的 token 来源

1
2
3
4
// View# getWindowToken
public IBinder getWindowToken() {
    return mAttachInfo != null ? mAttachInfo.mWindowToken : null;
}

View 的 Token 是从 mAttachInfo 拿的，因此要知道 mAttachInfo 是怎么来的

3.2.1 View$AttachInfo

AttachInfo 是 View 的一个内部类，里面包含信息主要有

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
// View$AttachInfo.java

    /**
     * A set of information given to a view when it is attached to its parent
     * window.
     */
 final static class AttachInfo {


        final IWindowSession mSession;


        final IWindow mWindow;

        final IBinder mWindowToken;  // 这个就是要拿的 token

        Display mDisplay;

        final Callbacks mRootCallbacks;

        IWindowId mIWindowId;
        WindowId mWindowId;

        /**
         * The top view of the hierarchy.
         */
        View mRootView;

        IBinder mPanelParentWindowToken;

        boolean mHardwareAccelerated;
        boolean mHardwareAccelerationRequested;
        ThreadedRenderer mThreadedRenderer;
        List<RenderNode> mPendingAnimatingRenderNodes;

        ....

 }

AttachInfo 的创建在 ViewRootImpl

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
// ViewRootImpl.java

 public ViewRootImpl(Context context, Display display) {

     ...

    mWindowSession = WindowManagerGlobal.getWindowSession();

    mWindow = new W(this);

    // 这里创建 mAttachInfo
    mAttachInfo = new View.AttachInfo(mWindowSession, mWindow, display, this, mHandler, this,
            context);

    ...

 }

3.2.2 AttachInfo 传递给 View 的过程

1
2
3
4
5
6
7
8
ViewRootImpl#setView
-> ViewRootImpl#requestLayout
-> ViewRootImpl#scheduleTraversals
-> Choreographer#postCallback
-> TraversalRunnable#run
-> ViewRootImpl#doTraversal
-> ViewRootImpl#performTraversals
-> View#dispatchAttachedToWindow(mAttachInfo, 0); // 这里创建好的 AttachInfo 赋值给 View

View#dispatchAttachedToWindow

1
2
3
4
5
6
7

void dispatchAttachedToWindow(AttachInfo info, int visibility) {
       mAttachInfo = info;

       ...

}

可以看到 View 中的 token 是要经过 View#dispatchAttachedToWindow 方法才能有值的，这要求我们在显示 PopupWindow 的时候，要选择相应的时机。

4 最终解决

通过上面的 PopupWindow 的 show 流程和 View 的token 赋值流程的分析，
在去看看 为啥我们在第一步加了对 Activity 状态的判断还出现崩溃。

主要是因为锚点 View 的 token 为空导致的。

导致 token 为空，也是因为调用 show 的时机不对。

解决办法是在调用 PopupWindow 的 show 之前先判断一下锚点 View 的 applicationWindowToken ,并且调用的时机也要调整一下，不能在 View 一创建的时候就调用。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
fun showReceiveGiftTips(tips: String?) {
     ...

     if (giftIcon.applicationWindowToken == null) { // 一 token 判断
         L.error(TAG, "showReceiveGiftTips giftIcon.applicationWindowToken return")
         return
     }
     val activity = getContextToActivity() // 二 activity 的判断
     if (ActivityUtils.activityIsDestroyed(activity)) {
         return
     }
     mHomeReceiveGiftTipsPopupWindow = HomeReceiveGiftTipsPopupWindow(context!!)
     mHomeReceiveGiftTipsPopupWindow!!.setData(tips)
     mHomeReceiveGiftTipsPopupWindow!!.showOnAnchor(fl_gift, ...
     )
 }

1. 后续在使用 PopupWindow 的时候要注意调用 show 的时机
2. show 之前最好判断一下锚点 View 的 token 和 Activity 的状态

yxhuang wechat
欢迎您扫一扫上面的微信公众号，订阅我的博客
