Koltin 协程 (二)

[toc]

3. 协程的整个配套体系

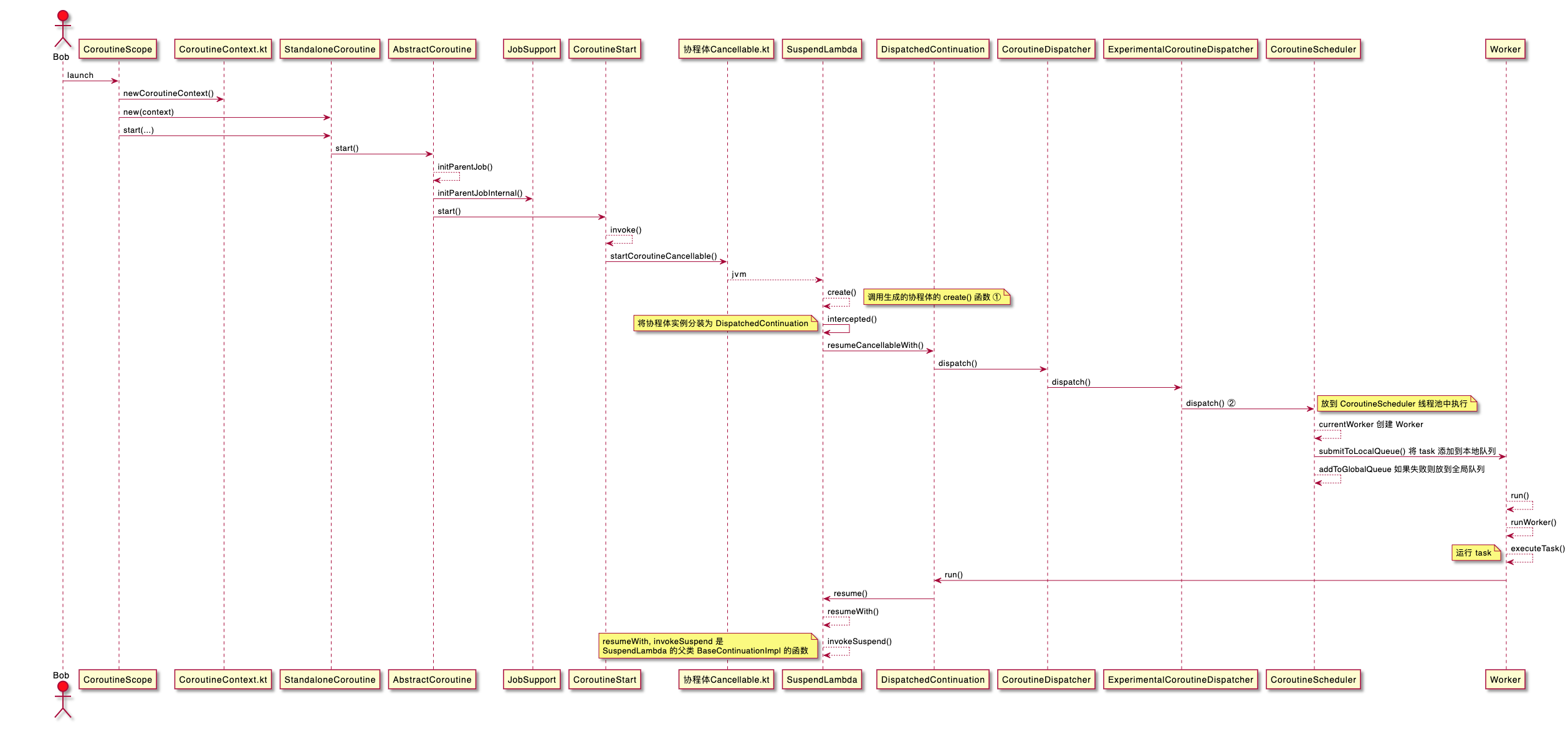

3.1 启动流程

说明:
SuspendLambda 是协程体类对象,封装协程体的操作

继承关系
SuspendLambda –> ContinuationImpl –> BaseContinuationImpl

1
2
3
4
5
6
7
8
9
10
11
12
13
public actual fun <R, T> (suspend R.() -> T).createCoroutineUnintercepted(
receiver: R,
completion: Continuation<T>
): Continuation<Unit> {
val probeCompletion = probeCoroutineCreated(completion)
return if (this is BaseContinuationImpl)
create(receiver, probeCompletion) // 调用生成代码里面的 create
else {
createCoroutineFromSuspendFunction(probeCompletion) {
(this as Function2<R, Continuation<T>, Any?>).invoke(receiver, it)
}
}
}

反编译的代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
public static final void main(@NotNull String[] args) {
Intrinsics.checkParameterIsNotNull(args, "args");
BuildersKt.launch$default((CoroutineScope)GlobalScope.INSTANCE, (CoroutineContext)null, (CoroutineStart)null, (Function2)(new Function2((Continuation)null) {
int label;

// BaseContinuationImpl 的 invokeSuspend() 调用
@Nullable
public final Object invokeSuspend(@NotNull Object $result) {
Object var2 = IntrinsicsKt.getCOROUTINE_SUSPENDED();
switch(this.label) {
case 0:
ResultKt.throwOnFailure($result);
Item var10000 = new Item();
this.label = 1;
if (CoroutineKt.postItem(var10000, this) == var2) {
return var2;
}
break;
case 1:
ResultKt.throwOnFailure($result);
break;
default:
throw new IllegalStateException("call to 'resume' before 'invoke' with coroutine");
}

return Unit.INSTANCE;
}

// 调用到这里的 create 方法
@NotNull
public final Continuation create(@Nullable Object value, @NotNull Continuation completion) {
Intrinsics.checkParameterIsNotNull(completion, "completion");
Function2 var3 = new <anonymous constructor>(completion);
return var3;
}

public final Object invoke(Object var1, Object var2) {
return ((<undefinedtype>)this.create(var1, (Continuation)var2)).invokeSuspend(Unit.INSTANCE);
}
}), 3, (Object)null).start();
}

② CoroutineScheduler 是个线程池

BaseContinuationImpl 的 resumeWith() 会调用 invokeSuspend() 函数, invokeSuspend() 会调用生成协程体的 invokeSuspend()

3.2 协程体系

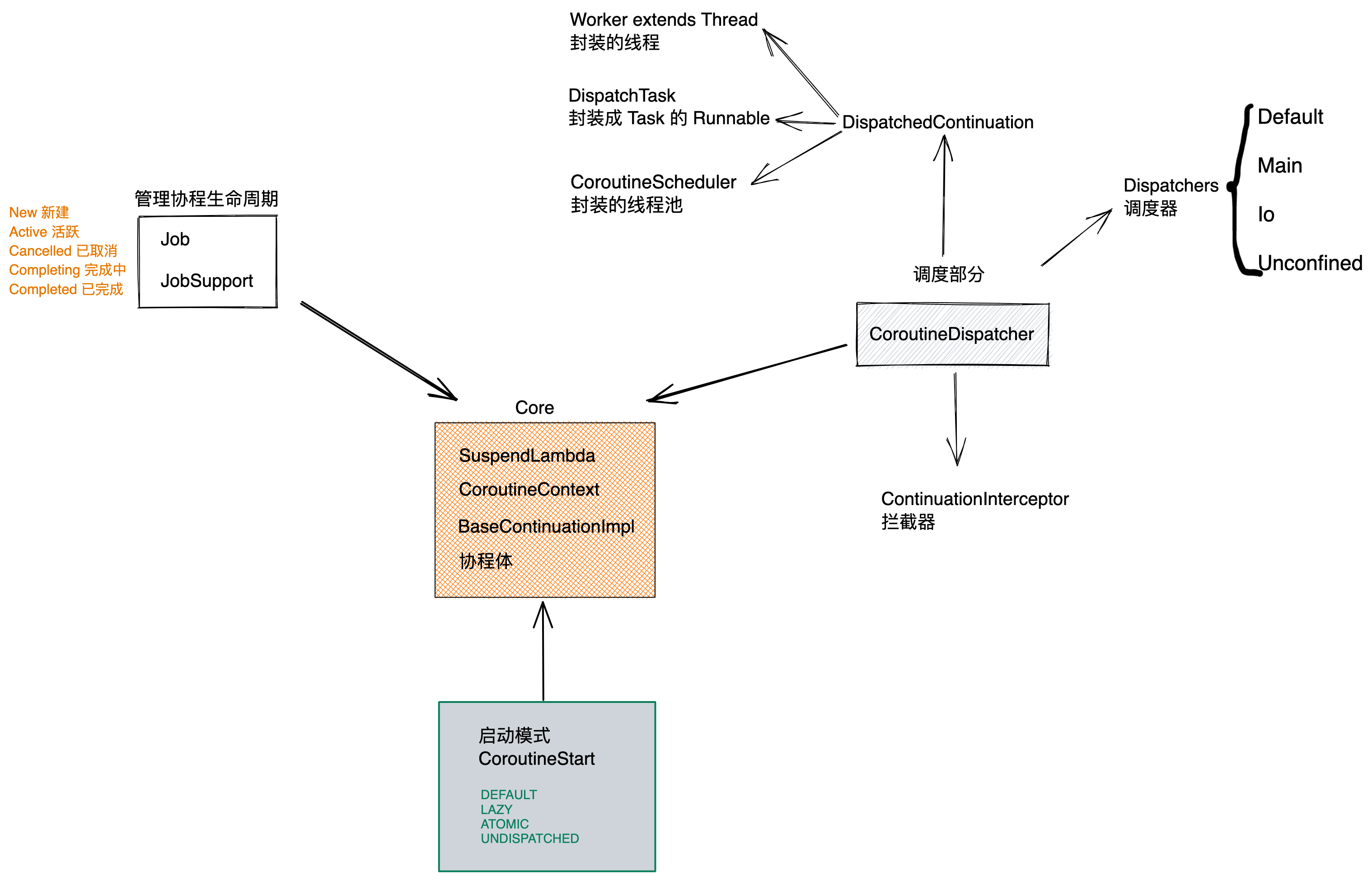

根据个人的理解将整个协程体系分为 Core, 调度部分,管理协程生命周期,启动模式四部分,这样的划分不一定正确,只是为了更加方便理解协程而划分的。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
internal abstract class BaseContinuationImpl(
public val completion: Continuation<Any?>?
) : Continuation<Any?>, CoroutineStackFrame, Serializable {
// This implementation is final. This fact is used to unroll resumeWith recursion.
public final override fun resumeWith(result: Result<Any?>) {
// This loop unrolls recursion in current.resumeWith(param) to make saner and shorter stack traces on resume
var current = this
var param = result
while (true) {
probeCoroutineResumed(current)
with(current) {
val completion = completion!!
val outcome: Result<Any?> =
try {
// 调用 invokeSuspend 函数, 协程体真正执行
val outcome = invokeSuspend(param)
//// invokeSuspend方法返回值为COROUTINE_SUSPENDED,resumeWith方法被return,结束执行,说明执行了
if (outcome === COROUTINE_SUSPENDED) return
Result.success(outcome)
} catch (exception: Throwable) {
Result.failure(exception)
}
releaseIntercepted()
if (completion is BaseContinuationImpl) {
current = completion
param = outcome
} else {
completion.resumeWith(outcome)
return
}
}
}
}

// 这会调用协程体的 invokeSuspend 函数
protected abstract fun invokeSuspend(result: Result<Any?>): Any?

...
}

3.3 async / await

使用 async 可以让 supend 函数并发执行,减少整个函数的执行时间

3.5 挂起和恢复

挂起的本质是切线程,并且在相应的逻辑处理完成之后再重新切回线程。

挂起函数内执行挂起操作的时候会返回 coroutine_suspended 标志,结束协程体的运行,使协程挂起。
